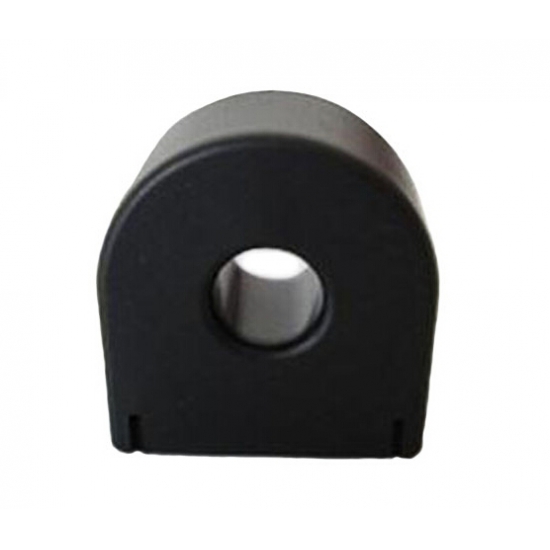

ZRH-C31 micro precision current transformers
- ItemNO : ZRH-C31
- Product Origin : China
- Order(MOQ) : 1
- Contact NowContact Now
Product Details
a. Main Features:
(1)、Small in size, light weight, easy to install with high density
(2)、Secondary output current, strong anti jamming capability
(1)、Rated input current: 0~10A
(2)、Rated output current: 0~10mA
(3)、Non-linearity: Ratio error ＜±0.1%; Phase error ＜±5′
(4)、Range of linearity：10%～2000% （or more）rated current
(5)、Frequency characteristic: 45~800HZ
(6)、Limitation of power consumption: 0.5VA
(7)、Insulation resistance: 500MΩ @500VdC
(8)、Operating temperature: -40℃~+85℃
(9)、Power frequency withstands voltage: 3kV 2mA 1min
(10)、Output load resistance:≤400Ω
(11)、Structure：Epoxy encapsulating
(12)、Outer casing：PBT heat-resistant material or ABS flame-retardant material
(1)、Small in size, light weight, easy to install with high density
(2)、Secondary output current, strong anti jamming capability
(3)、With excellent linearity, wide working range, perfect consistency
(1)、Rated input current: 0~10A
(2)、Rated output current: 0~10mA
(3)、Non-linearity: Ratio error ＜±0.1%; Phase error ＜±5′
(4)、Range of linearity：10%～2000% （or more）rated current
(5)、Frequency characteristic: 45~800HZ
(6)、Limitation of power consumption: 0.5VA
(7)、Insulation resistance: 500MΩ @500VdC
(8)、Operating temperature: -40℃~+85℃
(9)、Power frequency withstands voltage: 3kV 2mA 1min
(10)、Output load resistance:≤400Ω
(11)、Structure：Epoxy encapsulating
(12)、Outer casing：PBT heat-resistant material or ABS flame-retardant material
(13)、Terminal：input and output→pins
c. Technical parameters of commonly used product specifications
Note: The above specifications are stock products’ specifications. We can also design for customers according to their requirements.
